sFLC3 3D Response Curve

sFLC3 is already quite versatile with just using built-in Fuzzy Sets and Rule Sets models. It goes without saying that it becomes almost limitless if one builds a FL controller from scratch using the the full API.

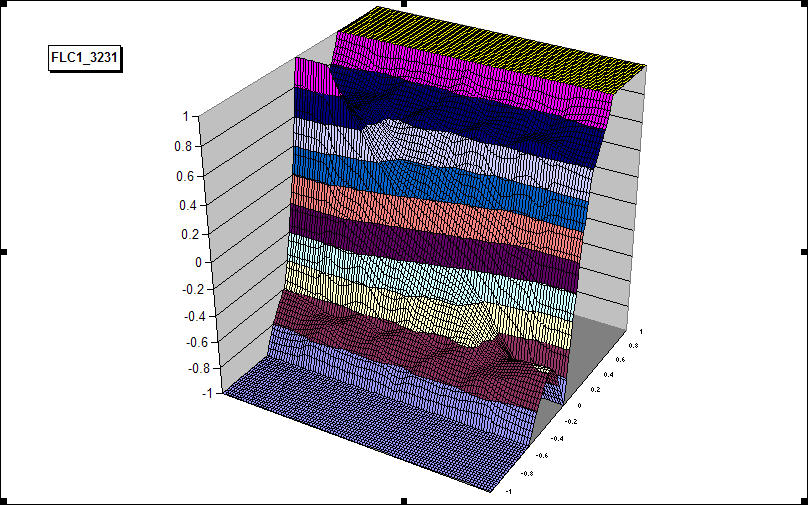

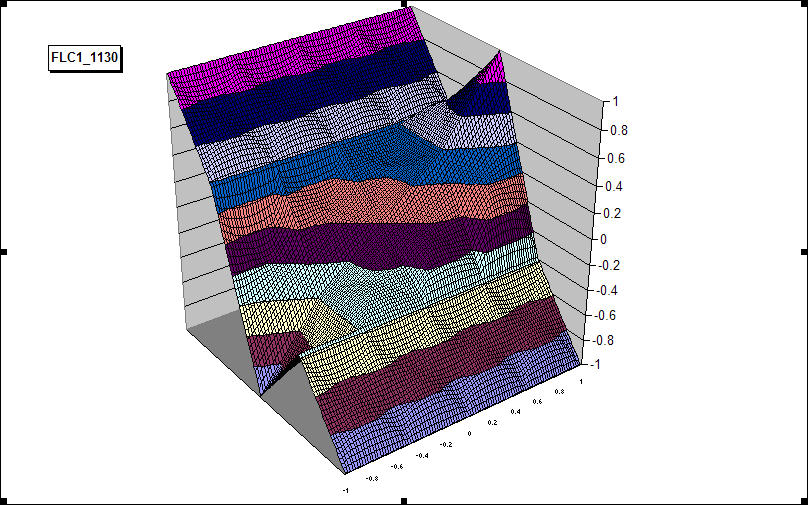

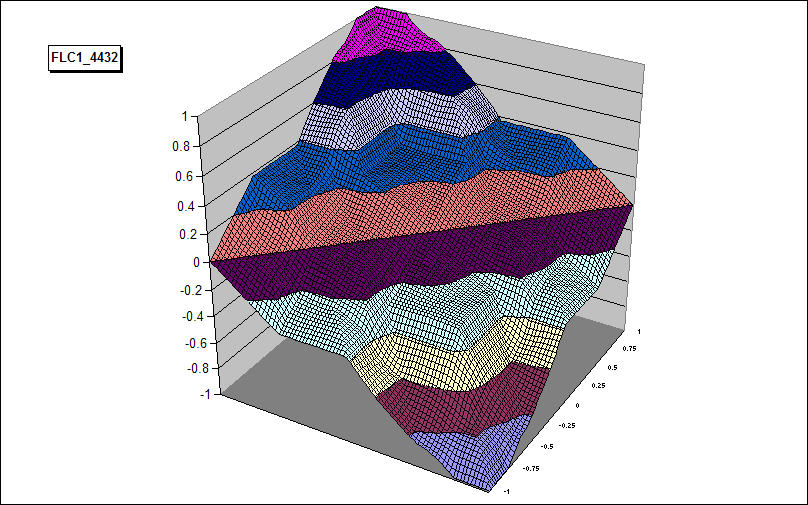

The best way to build sFLC3 is actually to use the Sample1 console application (yes... only 21KB, can you believe it...?) as it can generate any FL controller from predefined models.  Its use is quite straightforward, and the output (in Grid mode) is a CSV file saved to current folder.  That CSV file can then be used to plot the response curve.  Here below are 3 examples.  The 1st one a balanced FL controller FLC1_4432, using a 5x5 shape (1), with fuzzy sets number 4 and 4 for inputs, 3 for the output and a rule set number 2.  The response curve is here far more balanced and smooth than the other 2 examples.
